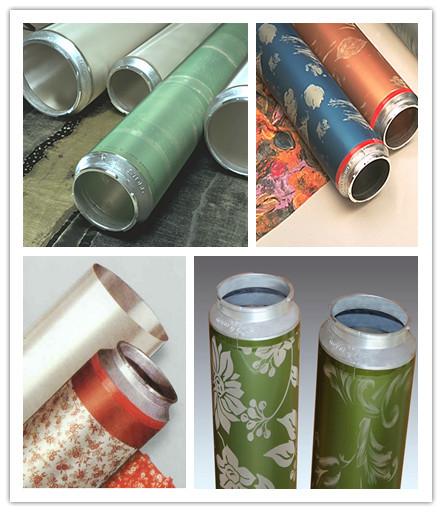

High Strength Extra Thickness Textile Machinery Spare Parts Wax
Special Screen Rotary Nickel Screen
Our rotary screen advantage:
Open area up to 18% ,there is no factory in china can make it except our factory,it
help smooth throughout of dyestuff paste, so that printing speed
and efficiency of printing machine can be ascended,experiments have
proved that up to 19% of paste volume can be saved at multiple
printing mills around the world.
Use 6 times stripping by water jet or LEN,by collecting the data from thousand
of experiments.Our screen also SULFUR-FREE and with excellent
brittleness,a convenient way to test the brittleness is the
so-called "lighter test": a piece of screen sample burnt by lighter
flame for 10 seconds, bend the screens sample to see if it breaks
at the burnt spot. our screens will not broken.
Thickness:11.5microns
Our quality is No.1 in china,even Chinese RMB paper currency also
use our screen,so i am sure if you buy our screen,it absolutely
will save a lot of money for your company.
Specifications
rotary printing screen export
More tough and tensile
High open area
identical repeats
longer printing lengths
Standard Rotary screens for textile printing
| Repeat(mm) | 640 914 1018 |
| Mesh | Thickness(μm) | Open Area (%) | Hole diameter |
| 125 | 100-105 | 14-16 | 79 |
| 195 | 100-105 | 15-16 | 52 |
Repeat(mm):640,914
Length(mm):1200-3500
For other specifications can be customized seperately
Rotary nickel screen: we can supply various nickel screens
a) Circumference: 640mm, 819mm, 914mm and 1018mm
b) Mesh: from 14 to 185
c) Length: from 1450mm to 3500mm
d) Characteristic of uniform transparency, high open area, good
toughness and elasticity,can be used for 5~7 times repeatedly,
saving dyestuff, bear high temperature
e) Suitable for printing on cloth and other fibers in textile
industries and wallpaper printing industries
Feature:
With high density-big hole, elastic, blockage-proof feature, will
increase the printing speed reduce the printing cost, improve the
efficiency it' s the highest quality screen in the world through
technology to get best printing result and reduce dyestuff
consumption, especially used for fine printing.
