Elasticity Rotary Printing Screen Weaving Machine Spare Parts Good
Toughness
Production details:

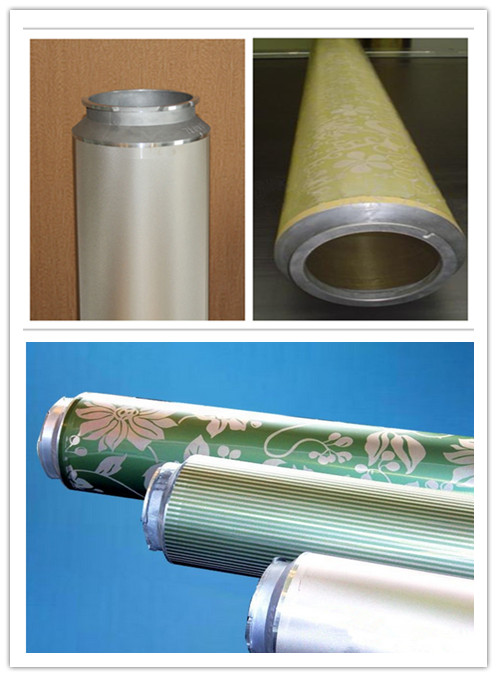

Rotary Nickel Screen, circumference (e.i.640,819,914,1018mm),
mesh(from 14 to 185),length(from 1450 to 3500mm).
Rotary nickel screen: we can supply various nickel screens
a) Circumference: 640mm, 819mm, 914mm and 1018mm
b) Mesh: from 14 to 185
c) Length: from 1450mm to 3500mm
d) Characteristic of uniform transparency, high open area, good
toughness and elasticity,can be used for 5~7 times repeatedly,
saving dyestuff, bear high temperature
e) Suitable for printing on cloth and other fibers in textile
industries and wallpaper printing industries
Competitive Advantage:
- Nickel screen with variety specifications and good tenacity,can be
repeatly use for several times,suitable for and kind of
dyestuff,with even infiltration,it can fit any pattern,specially
good at super fine pattern.
- higher speed of printing
- high open area,
- good toughness & elasticity,
- can be used for 5~7 times repeatedly,
- saving dyestuff,
- bear high temperature
- can reduce cost
- higher utilization ratio
- highest quality
Open area up to 18% ,there is no factory in china can make it except our factory,it
help smooththroughout of dyestuff paste, so that printing speed and
efficiency of printingmachine can be ascended,experiments have
proved that up to 19% of paste volumecan be saved at multiple
printing mills around the world.
specifications:
| MESH | THICKNESS(μm) | OPEN AREA(μm) | HOLE DIAMETER(μm) |
| 80 | 115-120 | 18 | 132 |
| 85 | 115-120 | 18 | 129 |
| 100 | 105-110 | 16 | 108 |
| REPEAT(MM) 640,819,914,1018 |
| LENGTH(MM) 1410-3500 |
for other specifications can be customized seperately
(example:14mesh,17mesh,20mesh,25mesh,30mesh).
Specifications:
Excellent toughness & elasticity,
be used for 5~7 times repeatedly,
saving dyestuff,
bear high temperature
