Profession Oblong Hollow Fiber Spinneret Stainless Steel 316 For Filament

CHANGZHOU LIANGRU INTERNATIONAL TRADE CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Profession Oblong Hollow Fiber Spinneret Stainless Steel 316 For Filament from wholesalers

    Buy cheap Profession Oblong Hollow Fiber Spinneret Stainless Steel 316 For Filament from wholesalers
    • Buy cheap Profession Oblong Hollow Fiber Spinneret Stainless Steel 316 For Filament from wholesalers

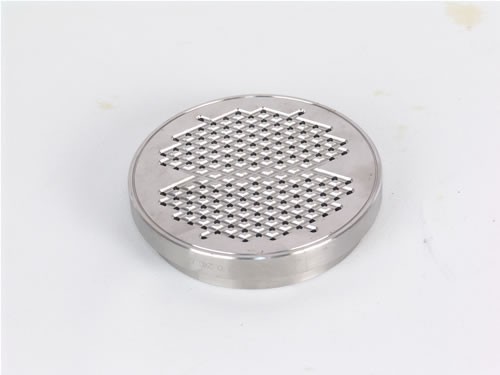

    Profession Oblong Hollow Fiber Spinneret Stainless Steel 316 For Filament

    Ask Lasest Price
    Brand Name : LiangRu
    Model Number : LR
    Certification : ISO9001
    Price : Different goods has different price
    Payment Terms : T/T,L/C or others
    Supply Ability : sufficient supply
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    Profession Oblong Hollow Fiber Spinneret Stainless Steel 316 For Filament

    Profession Oblong Hollow Fiber Spinneret Stainless Steel 316 For Filament


    Specification:


    Spinneret for Hollow fiber(3D to 15D)
    Spinneret for Solid Fiber(PSF)
    ​Spinneret for solid fiber (1.5D to 15D)
    Our company professionally produces variety of Spinneret for spinning chemical fiber ranging from three-dimensional fiber, 2-dimensional fiber, cotton type fiber, wool type fiber, bi-component fiber and so on.
    Spinneret for hollow fiber or solid fiber.


    1. Type: hollow and solid.
    2. Denier:1D-15D

    (1.5D to 15D).


    0.15mm 0.20mm ≤4/1
    0.20mm 0.30mm ≤5/1
    0.30mm 0.50mm ≤6/1
    1. Manufacturing tolerances:
    Capillary diameter: ±0.002mm
    Capillary length: ±0.02mm

    2. Capillary length and diameter (L/D):
    Over 0.5mm ≤20/1
    3. Surface roughness of exit side: ≤Rz 0.8
    4. Surface roughness of capillary: ≤Rz 0.4
    5. Maximum 2m length and 20,000 holes for rectangular spinneret.
    6. Maximum diameter 600mm and 40,000 holes for round spinneret.
    7. Minimum capillary diameter 0.15mm.


    Professional Packing to ensure no break down of the products during long distance delivery. early delivery can be ensured per special request. Delivery: 20-30 days;
    Packing: Can be Purchased and Packed separately.
    2. relate products:
    Fiber Production Line Components


    Fiber spinneret :

    The spinneret with a screw base and the middle spinneret connection, and screw the cover plate and the middle spinneret connected and make more tube penetration of the needle cover all the small hole in the pipe,The utility model relates to the field of hollow fiber membrane. Specifically refers to a production of single wire porous hollow fiber membrane spinning head assembly, the component including the multi-tube spinneret needle, flat, base of the spinneret, the spinneret the middle, the core solution and the solution connecting parts described in the taper part of the multi-tube needle firmly plugged into the base of the taper part of the spinneret, imports of parts to the solution screwed into the middle of the spinneret, the core fluid inlet connection parts screwed into the spinneret base.
    1. Advantages:
    A. Best Size and type will be provided by technical team based on the knowledge of the spinning machine customers are using.
    B. Resistant to high pressure, high temperature and corrosion.
    C. Quality Guaranteed. Skillful Welding and Maching.
    2. Delivery: 20-30 days; early delivery can be ensured per special request.


    Grades ComparisonAISI304316316317L321431630
    DIN1.43011.44011.44041.44381.45411.40571.4542
    JISSUS304SUS316SUS316LSUS317LSUS321SUS431SUS630
    GB0Cr18Ni9-0Cr17Ni14
    Mo2
    -1Cr18Ni
    9Ti
    1Cr17Ni20Cr17Ni
    4Cu4Nb
    Chemical CompositionsC≤0.080.080.030.030.120.170.07
    Cr18-2016-1816-1818-2017-1915-1715.5-17.5
    Ni8-10.510-1410-1411-158-111.5-2.53-5
    Mo-2-32-33-4---
    Cu------3-5
    Ti----5*%C-0.8--
    Nb/Ta------0.15-0.45

    Mechanical Physical

    Properties

    Density 1000Kg/m37.97.957.957.957.97.77.75

    REL

    (σ0.2) MPa≥

    196205176176205588785
    Tension Strength (σ) Mpa496-600496-600480-600480-600490-600785-1370840-1370
    Elongation (δ%) ≥50455050501414-22
    Reduction area (ψ%) ≥60606060604552-56
    Hardness130-180130-180130-180130-180130-180257-270270-290
    Modulus Elasticity E197197197197197204-
    MagneticNNNN-YY
    Spinneret hardness range130-180130-180130-180130-180130-180HRC
    26-35
    HRC*
    28-44

    Technical Specifications


    1. Maximum diameter 600mm and 40,000 holes for round spinneret.


    2. Maximum 2m length and 20,000 holes for rectangular spinneret.

    3. Minimum capillary diameter 0.15mm.

    4. Manufacturing tolerances:

    Capillary diameter: ±0.002mm

    Capillary length: ±0.02mm

    5. Capillary length and diameter (L/D):

    0.15mm 0.20mm ≤4/1

    0.20mm 0.30mm ≤5/1

    0.30mm 0.50mm ≤6/1

    Over 0.5mm ≤20/1

    6. Surface roughness of capillary: ≤Rz 0.4

    Applications:
    A. Differential Fiber.
    B. Non-Woven ( PP /PPMB Spun Bonded)
    C. Composite Fiber.
    D. For Filament Yarn, both Mono-filament and Multi-filament.
    E. Nylon
    F. Staple Fiber.
    Used as a necessary spinning machine part.

    Competitive Advantage:

    We are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.


    Looking forward to hearing from your inqiry !
