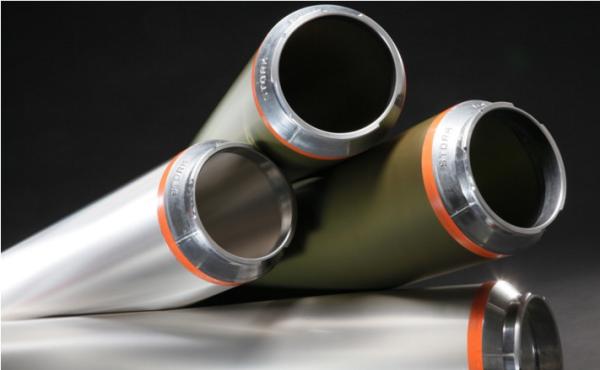

80Mesh Woven Metal Flexible Nickel Tube Rotary Screen Printing High
Toughness
Specifications:
high open area,
good toughness & elasticity,
can be used for 5~7 times repeatedly,
saving dyestuff,
bear high temperature
Rotary Screen Printing Advantage:
• Good symmetrical, good conglutination function of photosensitive
medicament
• orderliness and accurate screen caves, good dye output and
osmotic function
• More tough and tensile, safely operation and multiple use
Product description
Our products has unparalleled excellence performance. Printing ink
penetration uniform, Photo emulsion and Sensitizer adhesion is
strong bonding, high toughness, high elasticity, good thickness and
uniform open area.Our raw material of nickel is high purity and
with less sulfur. Match it with high quality pure additives.
What is rotary screen printing?
In rotary printing, the web travels at a consistent speed between
the screen and a steel or rubber impression roller immediately
below the screen. (The impression roller serves the same function
as the press bed on a flatbed press.) As the web passes through the
rotary unit, the screen spins at a rate that identically matches
the speed of substrate movement.
Rotary screen printing is so named because it uses a cylindrical
screen that rotates in a fixed position rather than a flat screen
that is raised and lowered over the same print location. Rotary
presses place the squeegee within the screen. These machines are
designed for roll-to-roll (web) printing on flexible materials
ranging from narrow web films to wide-format roll textiles.
The squeegee on a rotary press is in a fixed position with its edge
making contact with the inside surface of the screen precisely at
the point where the screen, substrate, and impression roller come
together (Figure 1). Ink is automatically fed into the center of
the screen and collects in a wedge-shaped "well" formed by the
leading side of the squeegee and the screen's interior surface. The
motion of the screen causes this bead of ink to roll, which forces
ink into stencil openings, essentially flooding the screen without
requiring a floodbar. The squeegee then shears the ink as the
stencil and substrate come into contact, allowing the ink to
transfer cleanly to the material.
In short, rotary printing is a continuous, stepless image-transfer
method. The geometry of the screen and the position of the squeegee
within the screen combine to provide both the screen-flooding and
image-transfer functions in a single smooth operation that repeats
with every revolution of the screen.
