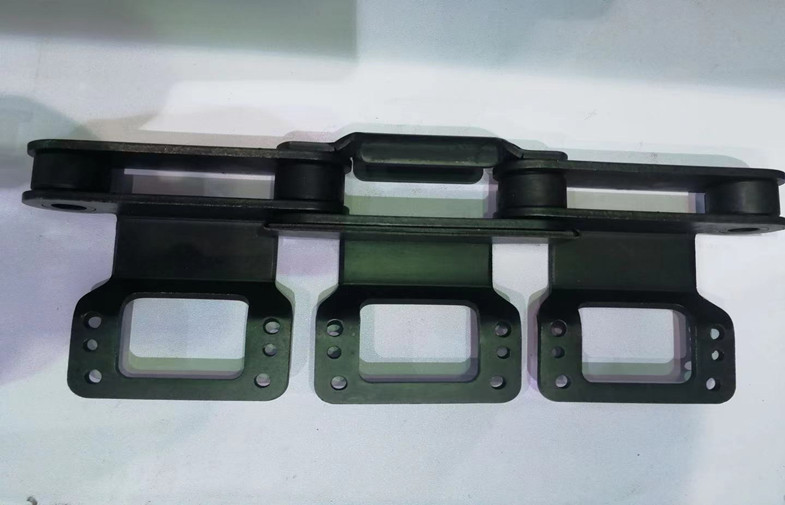

Carbon/Stainless Steel Stenter Chains Spare Parts For Textile
Machine Link
Specifications:
We have been manufacturering, exportering and supplying Stenter
Clip suitable for type for Famatex, Primatex, Artos, Monfort,
Bruckner, Harish, Stentex, James Farmer Norton, Krantz with
international standard.
Our spare parts are suitable for many machines such as
stenter,mercerizing machine,carpet machine,artificial leather
machine.
Description:
Chain
BC-10 Fomer West Germany BABCOCK Heat Setting Range,Japan lchikin
Heat
Setting Machine, Fomer West Germany FAMATEX Senter
Our range includes complete pin and clip carriers, pin protection
clips, chain links, graphite slide rails and wear pads, drive
belts, rivets, bushes, clip openers and closers, width adjustment
nuts and gears.
Roller chain Specifications:
1) A series chains:
a) Simplex: 25-1 ~ 240-1
b) Duplex: 25-2 ~ 240-2
c) Triplex: 35-3 ~ 240-3
d) Quadruplex: 40-4 ~ 240-4
e) Quintuple: 40-5 ~ 240-5
f) Sextuple: 40-6 ~ 240-6
g) Octuple: 40-8 ~ 240-8
2) B series chains:
a) Simplex: 04B-1 ~ 48B-1
b) Duplex: 04B-2 ~ 48B-2
c) Triplex: 06B-3 ~ 48B-3
d) Quadruplex: 08B-4 ~ 48B-4
e) Quintuple: 08B-5 ~ 48B-5
f) Sextuple: 08B-6 ~ 48B-6
g) Octuple: 08B-8 ~ 48B-8
3) Colors available: natural, yellow, blue, black
4) Materials: carbon steel, stainless steel
CHAIN FOR TEXTILE MACHINE:
Roller chains,triplex roller chain,
handdrail drive chain
walking tractor chains and ratay tillage
Description:
when operating at elevated operating temperatures and at speeds in
excess of 150 meters per min. ,Various combination of entry and
exit chain rails are supplied for different applications. Extended
entry rail track up to 6.3 meters can be provided which can support
the Fabric feeding device, the Steaming device, Selvedge Gumming
and pre-drying unit etc. Extended exit rail tracks up to 5.8 meters
length can support the conventional Air Cooling zone, Selvedge
Trimmer, Chain cleaning device etc.Properly seasoned Cast Iron
chain rail guides are provided to support the moving pin clip
chain. They are strong and distortion free even
Silent Features
- Roller pins and Bushes are manufactured from steel duly hardened
and grained
- As all parts are manufactured according to precision tolerance and
checked thoroughly, each single part is interchangeable.
- High Strenth Material Used for strip & Pinbars.
- All the pins are Hardence & Nicle Chrome Plated
- Chain Bridge and Link are manufactured from steel with uniform
accuracy
- Sintered bronze liners ensures smooth and continues running of
chain at high temperature
- Complete manufacturing under closed supervision of in house strict
insepction department
- Ensuring caregful and steady stretching of all fabrics and in
working conditions also with high temperature applied for their
setting.
