Brand Name : | LIANGRU |
Model Number : | 125M |
Certification : | ISO |
Price : | negotiable |
Payment Terms : | T/T,L/C or others |
Supply Ability : | sufficient supply |
Delivery Time : | 15-25days |
MOQ : | 1PC |

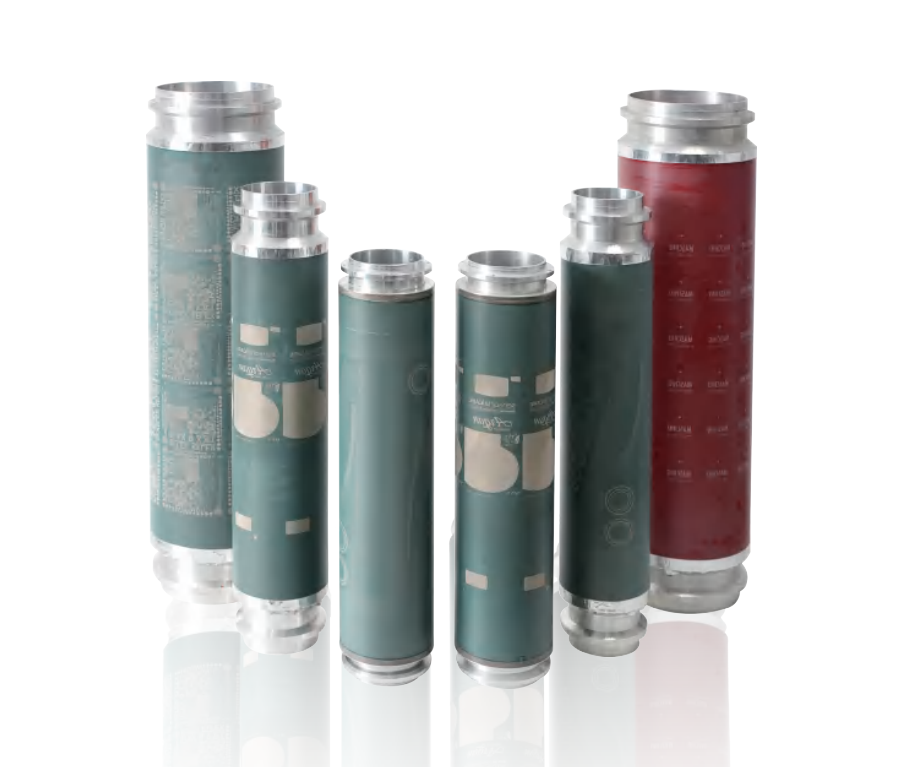

TMP Screen (Pre-coated) highly wrinkle resistant 80M 125M 135M 195M
TMP screen materials, with their excellent performance, have achieved higher quality and faster printing effects, bringing significant changes to the printing industry. It can reduce your operating costs, thereby enhancing your compet 巾veness, without the need for add 巾 onal investment in prepress equipment and printing machines.
-Higher strength and longer running life: Unlike all woven mesh
materials, TMP is a unique hexagonal structure of non-woven metal
wired mesh similar to TMS wired mesh, known for its long running
life.
-Shorter downtime: TMP is highly wrinkle resistant and unlike woven
materials, it is almost never broken or damaged during printing
machine setup or printing process. The small particles on the
screen or the joints between the screens will no longer be a
problem. Whether it's short-term or long-term production, TMP can
reduce downtime and save you costs.
-No need for spare screen: In addition, due to the very long
service life of the screen and the extremely low possib 山- ty of
breakage during the printing process, there is no need to produce
spare screen for longer operations. This will further reduce your
screen cost.
80#32% | 80#40% | 125#15% | 135#22% | 195#19% | 215#21% | 305#14% | 305#19% | 400#193% | 500#15% | |
mesh | 80 | 80 | 125 | 135 | 195 | 215 | 305 | 305 | 400 | 500 |
Thickness | 14 | 12 | 100 | 120 | 110 | 80 | 80 | 80 | 70 | 70 |
Open Area | 40 | 32 | 15 | 22 | 19 | 21 | 11 | 13 | 13 | 15 |
Hole Diameter | 210 | 200 | 79 | 72 | 54 | 54 | 28 | 30 | 22 | 15 |
Ink Deposit | 60 | 40 | 15 | 13 | 16 | 17 | 9 | 10 | 5 | 6 |
Particle Size | 70 | 66 | 26 | 24 | 18 | 18 | 9 | 10 | 7 | 8 |
Resolution | 330 | 330 | 220 | 200 | 135 | 125 | 100 | 100 | 70 | 60 |
![]() |
